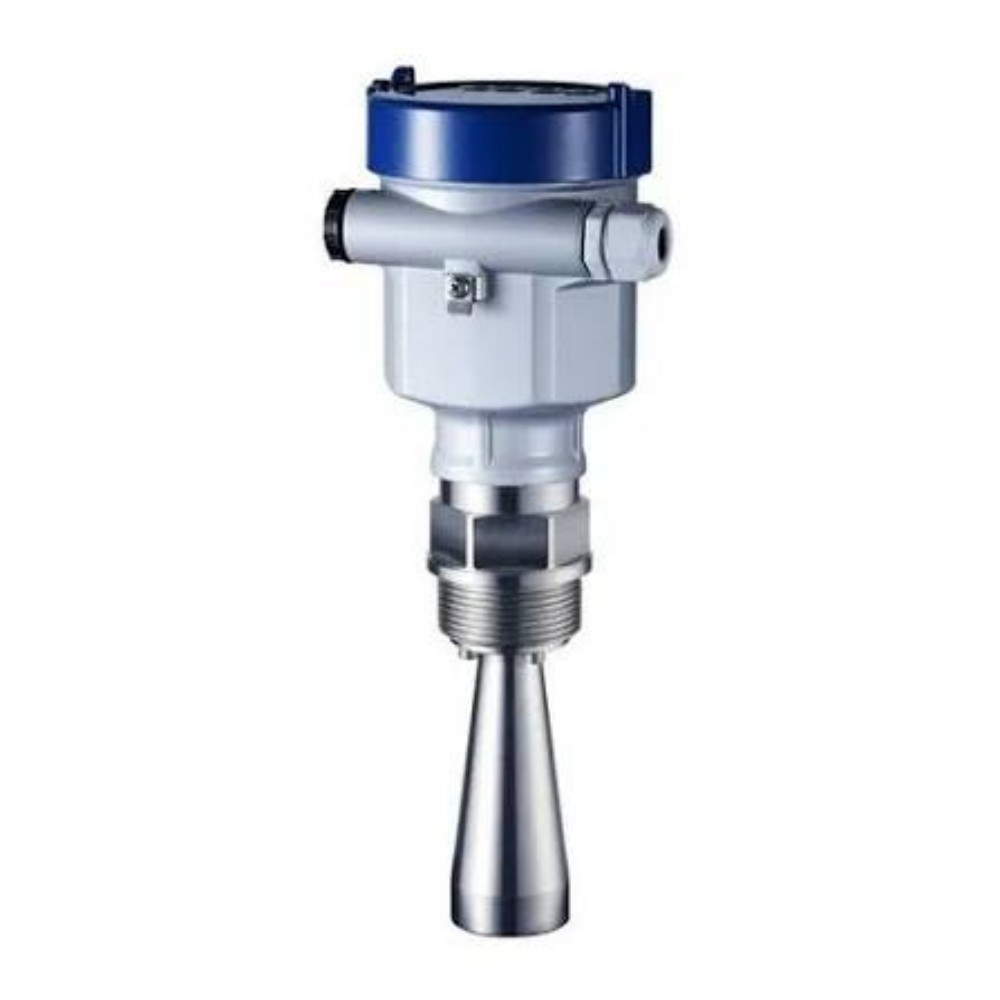

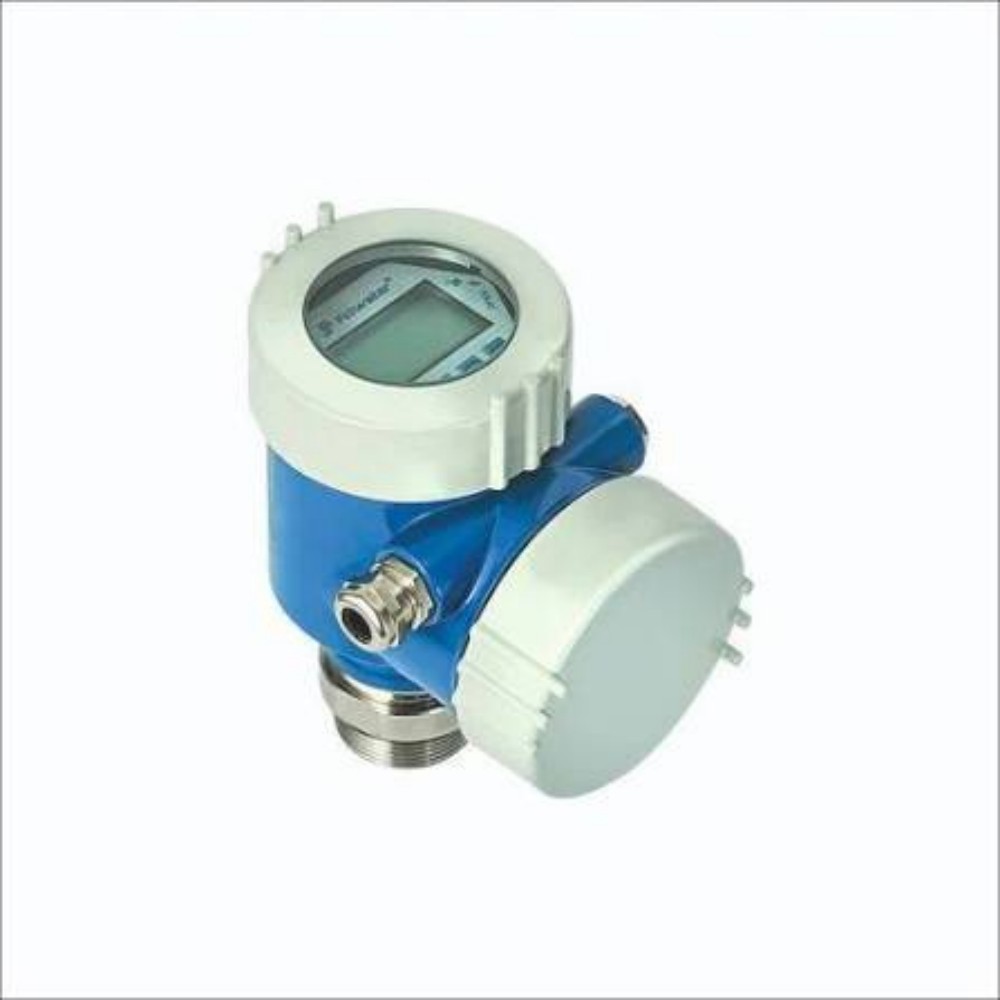

Digital Radar Level Sensor

Name: Digital Radar Level Sensor
Brand: SAMA INDUSTRIAL SOLUTIONS
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Digital Radar Level Sensor Specification

Stability
High stability

Current Range
4-20mA

Humidity %
0-100%(Non-condensing)

Diameter
DN80mm

Sensitivity
High

Mounting
Flange Mount

Operating Temperature
-40C to +85C

Measurement Range
0.25 to 30 meters

Measuring Units
m, ft

Equipment Type
Digital Radar Level Sensor

Frequency
26GHz

Process Connection
Flange DN80/DN100, Thread

Input
24V DC

Application Media
Liquids & Solids

Response Time
<1s

Storage Temperature
-40C to +85C

Connectivity Type
Wired (terminal)

Housing Material
Aluminium Alloy/Plastic

Model
Digital Radar Level Sensor

Length
customized as required

Signal Type
Radar (Electromagnetic)

Temperature Range
-40C to +85C

Language
English

Pressure Range
-0.1 MPa to 2 MPa

Protection
IP67/IP68

Output
4-20mA, HART

Color
Grey with Blue Accents

Dimension (L*W*H)
Approx. 250mm x 150mm x 100mm

Resolution
1mm

Connecting Type
Thread/Flange

Sensor Type
Radar (Non-contact)

Connector
Cable gland, M20x1.5

Material
Stainless Steel/Plastic

Power Supply
24V DC

Power Consumption
< 2W

Accuracy
3mm

Display Type
Digital LCD

Range
0-30 meters

Data Logging
Optional with Modbus

Interface Support
HART, RS485

Explosion Proof
Optional Ex d IIC T6 Gb

Maintenance
Maintenance-free operation

Beam Angle
8 (standard)

Vibration Resistance
High (for industrial environments)

Enclosure Material
Aluminum alloy with powder coating or Plastic

Blind Zone
0.25m (liquid), 0.5m (solid)

Weight
Approx. 2.5 kg

Integrated Temperature Compensation
Yes

About Digital Radar Level Sensor

Discover the illustrious Digital Radar Level Sensor, a trending solution designed for wondrous measurement accuracy and reliability in industrial applications. With a prodigious measurement range of 0.25 to 30 meters, it provides popular, maintenance-free operation in harsh, high-vibration environments. Its explosion-proof options, stainless steel or plastic build, and IP67/IP68 protection ensure maximum durability. Integrated temperature compensation, digital LCD display, and Modbus-enabled data logging add value. Enjoy high stability, sensitivity, and a blazing <1s response-all with minimal power consumption. Truly a deal for exporters, suppliers, and traders worldwide.

Application Versatility & Material Excellence

Digital Radar Level Sensor is ideal for both liquid and solid media across diverse surfaces, thanks to its high-performance, non-contact radar technology. Crafted from stainless steel, aluminum alloy, or durable plastic, it withstands corrosive and demanding environments. Its competitive advantages include high sensitivity, prolific stability, explosion-proof housing, and exceptional accuracy-even in challenging industrial sites. This makes it a preferred choice for exporters, suppliers, and system integrators seeking illustrious performance and longevity.

Payment, Shipping & Sample Policies

Payment terms for the Digital Radar Level Sensor are flexible and can be discussed as per the customer's requirements. FOB Port is available for streamlined transportation and convenient drop-off points. Customers can request an estimate or sample prior to bulk orders, ensuring confidence in product quality. We handle international logistics, provide prompt transportation updates, and ensure secure packaging for safe delivery at your location. Contact us directly for detailed payment and sample policy information.

FAQ's of Digital Radar Level Sensor:

Q: How does the Digital Radar Level Sensor ensure accurate level measurement in difficult environments?

A: The sensor uses advanced non-contact radar technology with high sensitivity and integrated temperature compensation, ensuring accuracy and stability even in highly vibrating or harsh industrial settings.

Q: What types of media can be measured with this radar sensor?

A: It efficiently measures both liquids and solids, offering flexible application on diverse surfaces due to its robust build and versatile design.

Q: Where can the sensor be installed, and what are the available connection options?

A: Installation options include flange or threaded mounting, suitable for various tank or silo designs. The product supports DN80 and DN100 flange sizes and thread connections.

Q: What are the main benefits compared to traditional level sensors?

A: Unlike many conventional sensors, this model is maintenance-free, offers a prodigious accuracy of 3mm, responds in less than one second, and features optional explosion-proof designs, making it reliable and durable.

Q: How do I request a sample or estimate for large orders?

A: Simply contact our sales team with your requirements. We provide quick estimates, handle shipping logistics, and offer samples so you can assess the sensor before placing a bulk order.
